Optional LLM insights¶

When to read: Verify is green on the template path and you want a model to draft the insight narrative. Which model, cards, and NIST data-boundary: MODELS.md. Risk functions: NIST.md.

Default remains template — no API key required for ./scripts/verify.sh.

What this is (and is not)¶

The graph is still gold metrics → insight → critic → persist. The optional LLM replaces only the insight wording. It receives gold KPI JSON only — never bronze rows, comment bodies, or vault PII. The critic still rejects any number that is not in gold.

This path is PARTIAL: unit-tested with a mocked client in CI. A maintainer laptop run against local Ollama (llama3.2:3b) produced a critic-passing draft. That is not a CI proof. Do not call it production FOIA software.

flowchart LR
  gold[gold_metrics JSON] --> insight[insight_node]
  insight -->|template default| critic[critic]
  insight -->|optional llm| critic
  critic -->|pass| persist[persist]
  critic -->|retry| insight
  critic -->|fail| human[needs_human]

Local Ollama (from zero)¶

Ollama’s OpenAI-compatible API is http://127.0.0.1:11434/v1. Gold KPI JSON stays on this machine (NIST Map). Maintainer-laptop check: llama3.2:3b, critic passed. Not proven in CI.

1. Install the runtime¶

Download from ollama.com/download:

OS	Install
macOS	Official DMG, or `brew install --cask ollama-app` (prefer the cask / official app over a broken Homebrew formula)
Linux	`curl -fsSL https://ollama.com/install.sh \\| sh`
Windows	Installer from the download page

2. Confirm the daemon¶

ollama --version
curl -s http://127.0.0.1:11434/api/tags

If curl fails, start Ollama (menubar app, or ollama serve) and retry. See TROUBLESHOOTING.

3. Pull the proven tag¶

ollama pull llama3.2:3b
ollama list

Optional smoke test:

ollama run llama3.2:3b "Reply with the single word pong"

Why this tag, RAM, license, and model card: MODELS.md.

4. Point Operator ETL at it¶

uv sync --extra llm --extra dev
export OPERATOR_ETL_INSIGHT_BACKEND=llm
export OPERATOR_ETL_LLM_BASE_URL=http://127.0.0.1:11434/v1
export OPERATOR_ETL_LLM_MODEL=llama3.2:3b
# OPENAI_API_KEY not required when base URL is set

5. Run on a fresh warehouse¶

OPERATOR_ETL_WAREHOUSE=.tmp/mvp-demo-ollama/operator.duckdb \
OPERATOR_ETL_PIPELINE_NAME=public_comments OPERATOR_ETL_DOMAIN=gov \
  uv run etl-graph --source public_comments --pipeline public_comments

Expect insight_backend=llm and critic_passed=True. If the critic fails (needs_human), try mistral (ollama pull mistral and OPERATOR_ETL_LLM_MODEL=mistral) or keep the template. Do not loosen the critic. Do not send bronze/PII to Ollama.

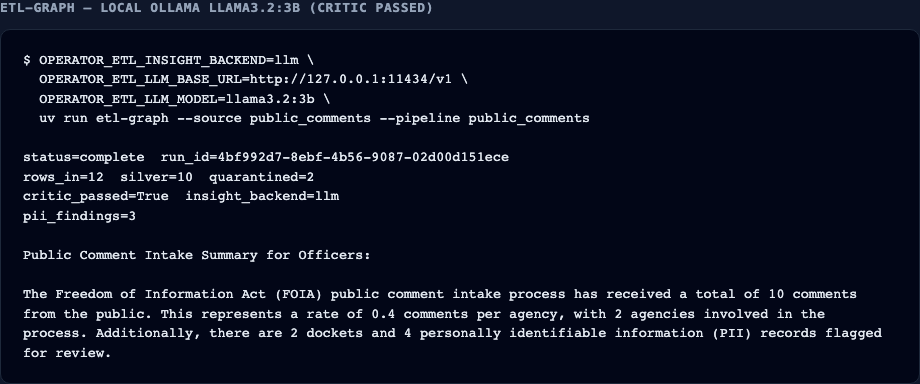

Local Ollama llama3.2:3b — critic passed

The critic checks digits, not whether the sentence used the rate correctly. Small models may still misread pii_rate 0.4.

Cloud OpenAI-compatible¶

Gold KPI JSON leaves the box to the host. That is allowed only if your policy accepts numeric aggregates off-machine. Comment bodies still never go.

OpenAI platform¶

uv sync --extra llm --extra dev
export OPERATOR_ETL_INSIGHT_BACKEND=llm
export OPERATOR_ETL_LLM_MODEL=gpt-4o-mini   # optional; this is the default
export OPENAI_API_KEY=sk-...
# no OPERATOR_ETL_LLM_BASE_URL → api.openai.com
uv run etl-graph --source public_comments --pipeline public_comments

Use a fresh warehouse (same as the FOIA demo) so counts stay expected. Card: MODELS.md.

Other `/v1` hosts (untested)¶

Any server that speaks OpenAI Chat Completions at a /v1 root (LM Studio, vLLM, a local proxy). Azure OpenAI only if that endpoint speaks the same API ChatOpenAI already uses — this repo does not ship AzureChatOpenAI. Label these paths untested.

export OPERATOR_ETL_INSIGHT_BACKEND=llm
export OPERATOR_ETL_LLM_BASE_URL=http://127.0.0.1:1234/v1
export OPERATOR_ETL_LLM_MODEL=your-local-model

If the extra is missing, the key is unset (and no base URL), or the call fails, the node falls back to the template and records a short note in errors. The critic still runs.

Cloud Run¶

The graph-runner image installs --extra llm. Terraform already mounts OPENAI_API_KEY from Secret Manager and sets:

Variable	Default in Terraform
`OPERATOR_ETL_INSIGHT_BACKEND`	`template`
`OPERATOR_ETL_LLM_MODEL`	`gpt-4o-mini`

After you replace the REPLACE_ME OpenAI secret:

gcloud secrets versions add operator-etl-staging-openai-api-key --data-file=-
# then set Cloud Run env OPERATOR_ETL_INSIGHT_BACKEND=llm on graph-runner

Do not flip the backend to llm while the secret is still the placeholder. Details: infra/README.md.

Environment¶

Variable	Default	Meaning
`OPERATOR_ETL_INSIGHT_BACKEND`	`template`	`template` or `llm`
`OPERATOR_ETL_LLM_MODEL`	`gpt-4o-mini`	Chat model id (`llama3.2:3b` on Ollama)
`OPERATOR_ETL_LLM_BASE_URL`	—	OpenAI-compatible base URL (localhost / proxy)
`OPERATOR_ETL_MAX_LLM_CALLS`	`12`	Per-run budget (critic retries count)
`OPENAI_API_KEY`	—	Unprefixed. Required for api.openai.com. Not required when `OPERATOR_ETL_LLM_BASE_URL` is set. Cloud Run mounts from Secret Manager.

Credentials: an API key or a base URL (local Ollama uses a dummy key inside the client). Both missing → template fallback.
