Dashboard (Streamlit)

When to read: After a green verify or FOIA demo — you want to see KPIs, quarantine, and the insight. Screenshots: TOUR.md. Install path: GETTING-STARTED §6.

Start

Gov and Orders can use different warehouses in one session:

export OPERATOR_ETL_WAREHOUSE=".tmp/mvp-demo/operator.duckdb"          # FOIA (after demo_mvp / etl-graph)
export OPERATOR_ETL_ORDERS_WAREHOUSE=".tmp/orders-demo/operator.duckdb"  # after: uv run etl run --source demo
export OPERATOR_ETL_PIPELINE_NAME=public_comments
export OPERATOR_ETL_DOMAIN=gov
uv run streamlit run dashboard/app.py

Or: uv run etl dashboard (same env). Open the URL Streamlit prints (usually http://localhost:8501).

Gov / FOIA tab

flowchart LR
  Verify[verify.sh / demo_mvp] --> WH[".tmp/mvp-demo/operator.duckdb"]
  Orders[etl run --source demo] --> OW["orders warehouse"]
  WH --> App[dashboard/app.py]
  OW --> App
  App --> Gov[Gov / FOIA tab]
  App --> OrdersTab[Orders demo tab]

Gov / FOIA tab (what “good” looks like)

After a successful FOIA run:

Widget Expected
Bronze / silver / quarantined 12 / 10 / 2
Gate PASS
Comments / dockets / PII flagged 10 / 2 / ≥4
PII rate 0.4 (40%)
Comments by agency EPA and FCC rows
Quarantine expander 2 rows with validation errors
Latest insight Template or local-Ollama summary; critic-passed numbers only
Pipeline runs At least one ok / complete run

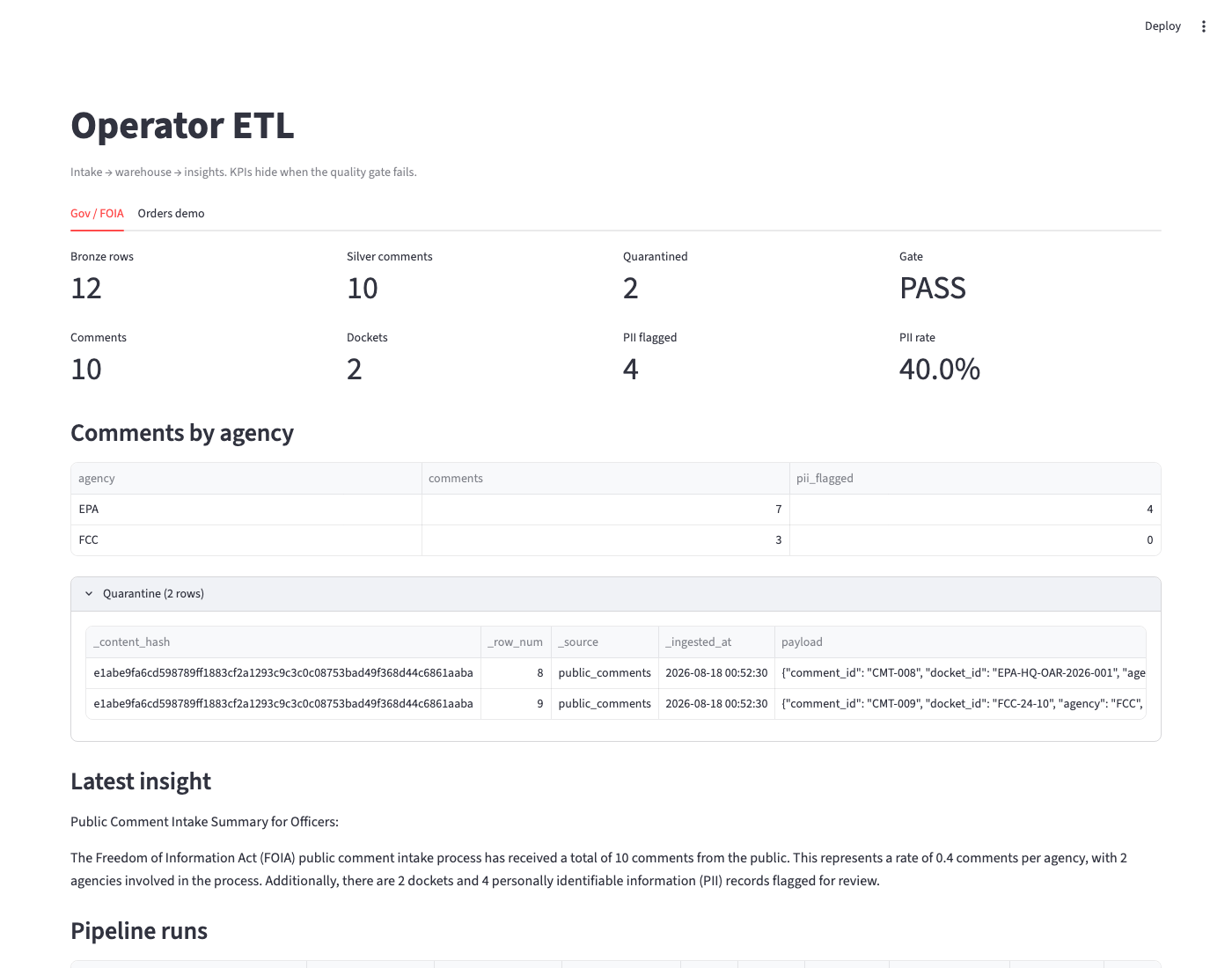

Quarantine expander + latest insight

If you see “No gov warehouse yet”, the env warehouse path is wrong or you have not run the demo. Recapture: uv run python scripts/capture_screenshots.py (Playwright, not CI).

Orders demo tab

Uses a separate orders warehouse (OPERATOR_ETL_ORDERS_WAREHOUSE, default warehouse/operator.duckdb) so the Gov tab can stay on the FOIA demo file. Run first:

OPERATOR_ETL_WAREHOUSE=".tmp/orders-demo/operator.duckdb" \
uv run etl run --source demo
uv run etl dashboard   # with OPERATOR_ETL_ORDERS_WAREHOUSE pointing at that file

Expect 17 silver orders, 4 quarantined, quality PASS at the default 35% quarantine cap.

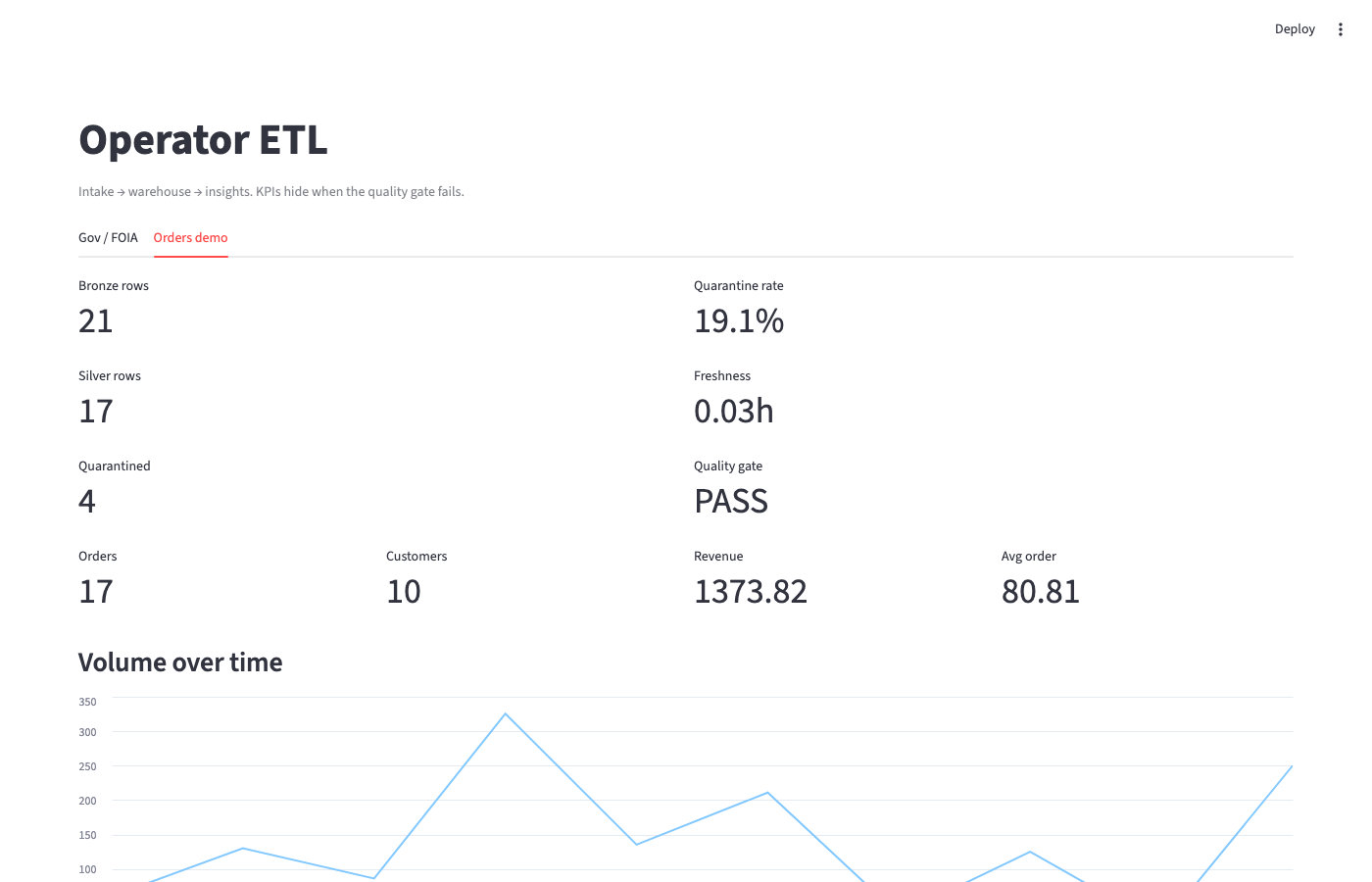

Orders demo tab

Fail-closed behavior

If the quality gate blocks, the UI shows BLOCKED and reasons (high quarantine or stale data). Insights/KPIs are withheld — that is intentional. GLOSSARY · fail-closed.

See also
